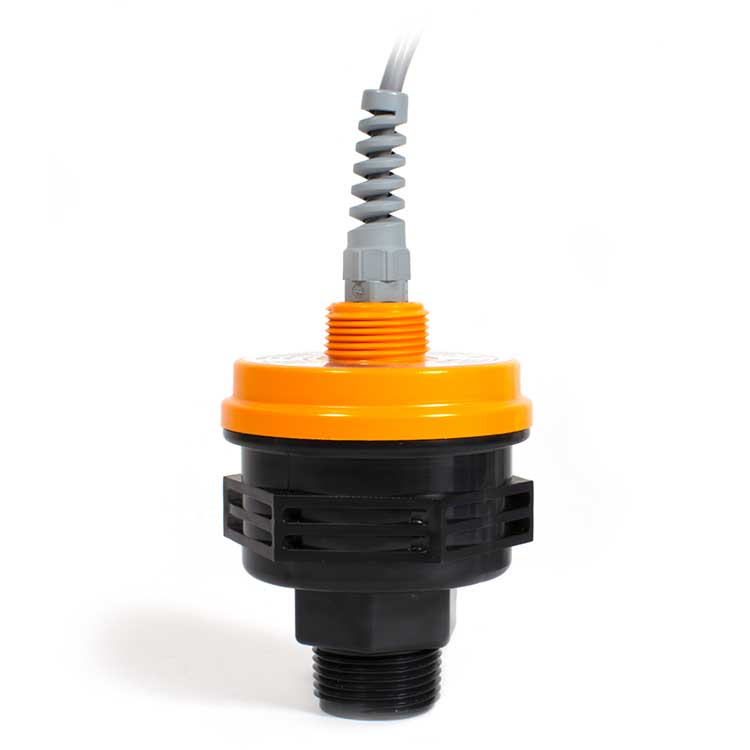

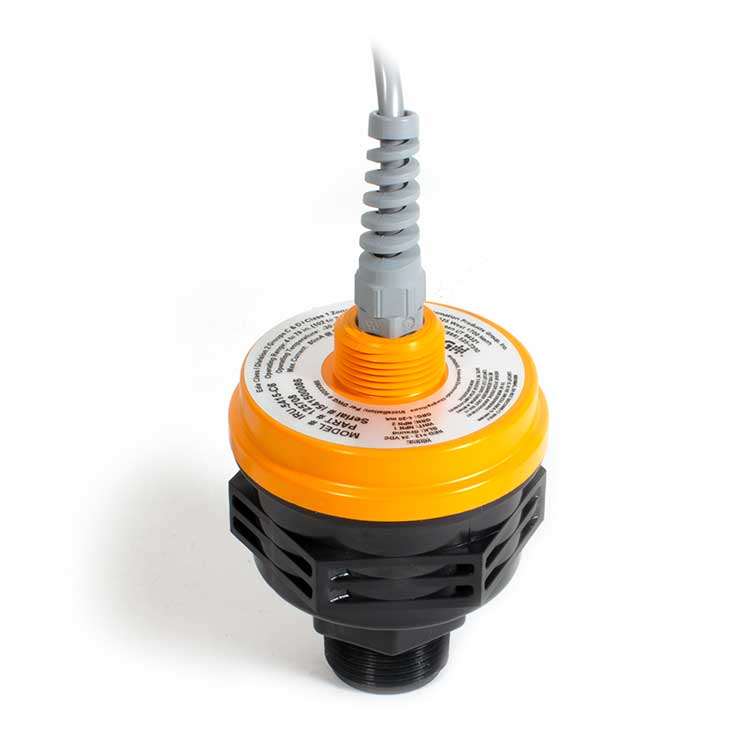

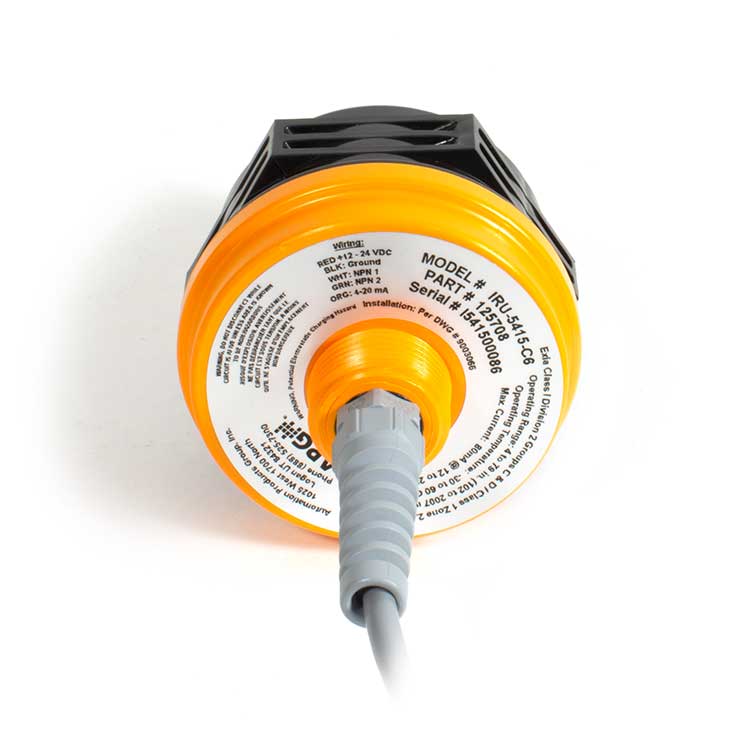

IRU-5000 Short Range Ultrasonic Sensor

Short range ultrasonic level sensors ideal for monitoring levels in small tanks and totes. Designed with flexibility in mind, this series features auto sense software for quick, easy programming in a variety of applications.

Price

$549

Detailed information on sensor options, and pricing can be found in the Configure Product Options section below.

Contact us for custom sensors

Description

The IRU-5000 series ultrasonic sensors offer 4-20mA, NPN trip points, and a programmable voltage outputs.

Short Range Specialists
Blanking distance is a big deal with non-contact level measurement. The IRU-5000 ultrasonic sensors have brought it down to only 4 inches.

Versatile Mounts

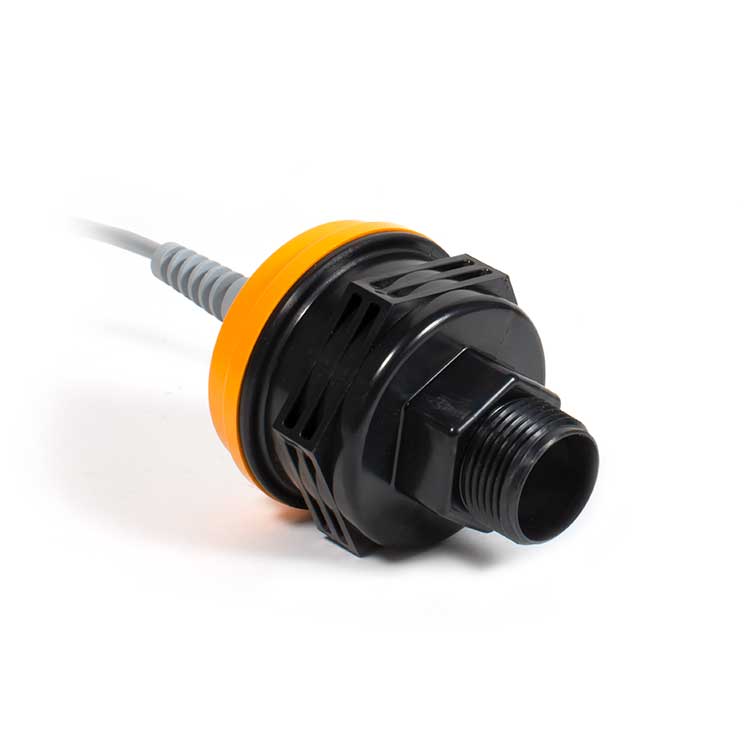

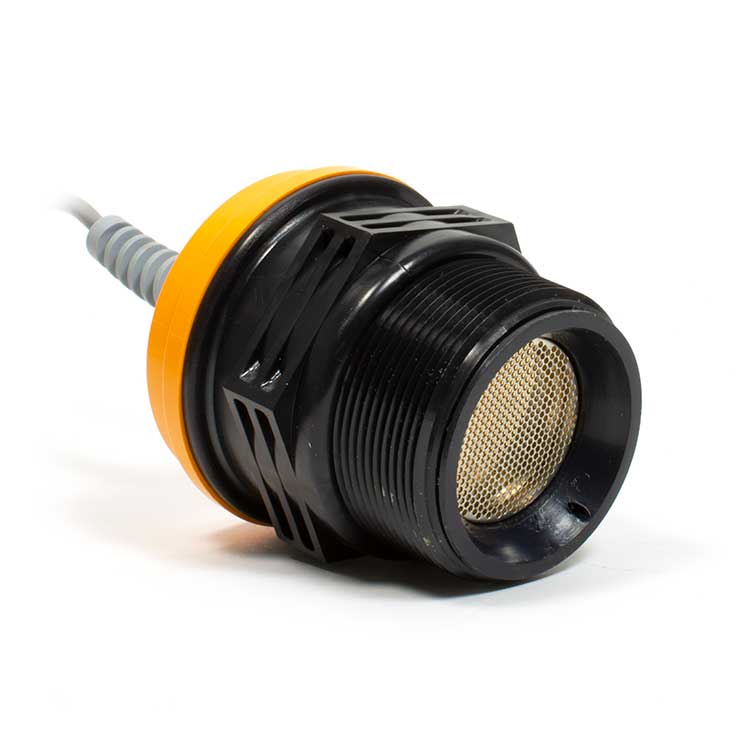

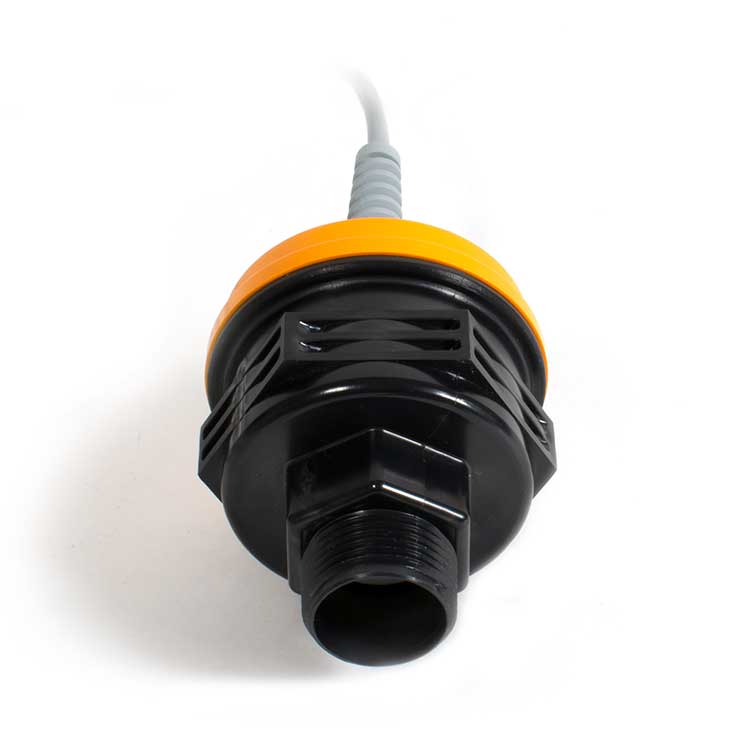

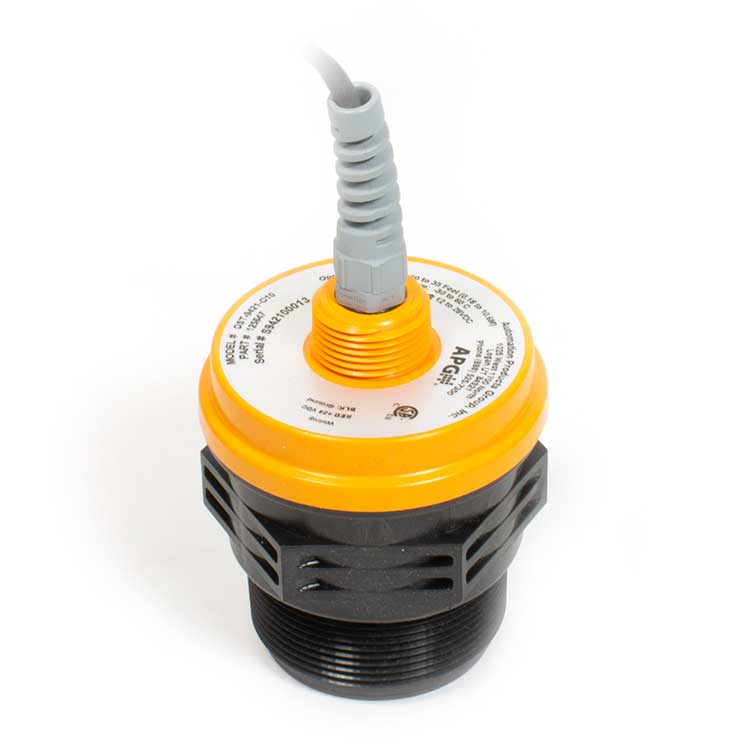

This sensor series let’s you choose between two mounts: 1-inch threads, or 2-inch threads. Makes sense, right?

Output Options
The IRU-5000 series ultrasonic sensors offer 4-20mA, NPN trip points, and a programmable voltage output.

Additional information

Sensor Type

Ultrasonic

Measuring Range

4 to 79 in.

Beam Angle

9º off axis

Frequency

143 kHz

Accuracy

±0.25% of detected range

Resolution

0.1 in.

Response Time

Up to 50 Hz, or once every 20 ms

Supply Voltage

12-28 VDC

Approvals

Class 1, Div. 2, Groups C, D, T6; Ex nA IIB T6 (select models only), Class 1, Zone 2, Aex nA IIB, T6 (select models only)

Output

0-2.5 V / 0-5V selectable, 4-20mA with 2 NPN trip points, 4-20mA, 2 Wire

Programmer (required)

RST-3002 Programming Module

Material - Housing

Polycarbonate/PET blend

Threaded Connection

1 NPT, 2 NPT

Process Temperature

-40° F to 140° F

Protection Rating

IP65

Sensor Specifications

Sensor Type

Ultrasonic

Measuring Range

4 to 79 in.

Beam Angle

9º off axis

Frequency

143 kHz

Accuracy

±0.25% of detected range

Resolution

0.1 in.

Response Time

Up to 50 Hz, or once every 20 ms

Supply Voltage

12-28 VDC

Approvals

Class 1, Div. 2, Groups C, D, T6; Ex nA IIB T6 (select models only), Class 1, Zone 2, Aex nA IIB, T6 (select models only)

Output

0-2.5 V / 0-5V selectable, 4-20mA with 2 NPN trip points, 4-20mA, 2 Wire

Programmer (required)

RST-3002 Programming Module

Material – Housing

Polycarbonate/PET blend

Threaded Connection

1 NPT, 2 NPT

Process Temperature

-40° F to 140° F

Protection Rating

IP65

Remotely Monitor Sensor Data

Adding remote monitoring capabilities to your sensors is an invaluable step to making sure your processes run smoothly. Not only can remote monitoring save you time, but it can save significant money.

We provide several options for remote monitoring, including:

  • No cloud necessary
  • Requires Internet connection
  • No monthly fees or special software
  • Edge Logic – All automation logic is handled locally on a control device.
  • No Ethernet Internet connection needed
  • Store data in cloud
  • Connects to strongest cellular network
  • Combine with edge logic controller for local automation
  • Ideal for remote sites with no cellular service
  • Store data in cloud
  • Reliable up-time
  • Combine with edge logic controller for local automation

Have Questions?

Our job is to consult, not sell. We are dedicated to help you find the perfect sensor for your solution. Let us know how we can help.
