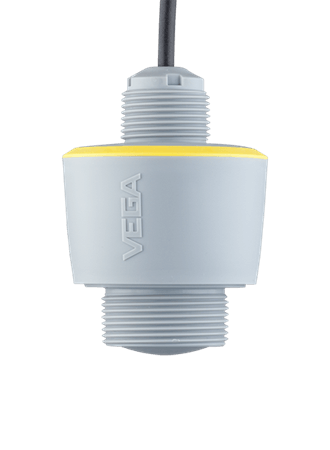

Vegapuls C 11 Short Range Non-Guided Radar

Ideal sensor for non-contact level measurement in simple applications where a high degree of protection is required.

  • Range: Measures up to 8 m (26.25 ft)
  • Accuracy: ±5 mm (0.2 in)
  • Signal: Powerful 80 GHz technology
  • Output: 4-20 mA
  • Cable Type/Length: PVC cable / 10 m (32.81 ft) length

IDEAL APPLICATIONS:

Water treatment, pumping stations, rain overflow basins and level monitoring. In bulk solids the sensors are used in small bulk solids silos or open containers.

Price

$615

SKU: PSC11 Categories: ,

Detailed information on sensor options, and pricing can be found in the Configure Product Options section below.

Contact us for custom sensors

Description

Benefits of Non-Guided Radar

  • Exact measurement results independent of medium, process and environmental conditions
  • Low-cost radar sensor for simple measurement tasks
  • Maintenance-free operation due to non-contact 80 GHz radar technology

Additional information

Measuring Range

Up to 8 m (26.25 ft)

Accuracy

±5 mm (0.2 in)

Output

4-20mA, 2 Wire

Frequency

80 GHz

Beam Angle

Threaded Connection

Thread 1½NPT / 1NPT, Thread G1½ / G1, Thread R1½ / R1

Protection Rating

IP66/IP68 (3 bar), Type 6P

Process Temperature

-40°C to 60°C (-40°F to 140°F)

Ambient Temperature

-40°C to 60°C (-40°F to 140°F)

Materials (wetted parts)

PVDF

Seal Material

FKM

Bluetooth Operation

Yes, No

Display and Adjustment

PC, Smartphone, Tablet

Sensor Specifications

Measuring Range

Up to 8 m (26.25 ft)

Accuracy

±5 mm (0.2 in)

Output

4-20mA, 2 Wire

Frequency

80 GHz

Beam Angle

Threaded Connection

Thread 1½NPT / 1NPT, Thread G1½ / G1, Thread R1½ / R1

Protection Rating

IP66/IP68 (3 bar), Type 6P

Process Temperature

-40°C to 60°C (-40°F to 140°F)

Ambient Temperature

-40°C to 60°C (-40°F to 140°F)

Materials (wetted parts)

PVDF

Seal Material

FKM

Bluetooth Operation

Yes, No

Display and Adjustment

PC, Smartphone, Tablet

Remotely Monitor Sensor Data

Adding remote monitoring capabilities to your sensors is an invaluable step to making sure your processes run smoothly. Not only can remote monitoring save you time, but it can save significant money.

We provide several options for remote monitoring, including:

  • No cloud necessary
  • Requires Internet connection
  • No monthly fees or special software
  • Edge Logic – All automation logic is handled locally on a control device.
  • No Ethernet Internet connection needed
  • Store data in cloud
  • Connects to strongest cellular network
  • Combine with edge logic controller for local automation
  • Ideal for remote sites with no cellular service
  • Store data in cloud
  • Reliable up-time
  • Combine with edge logic controller for local automation
